As the hardware landscape prepares for the next generation of GPU performance—spearheaded by the anticipated RTX 5000 series—the industry has faced a growing challenge: ensuring the reliability of the high-power 12V-2×6 connector. Corsair, a dominant force in the enthusiast power supply market, has responded to these concerns with a comprehensive strategy, launching a suite of new safety mechanisms and product refreshes. By introducing "PinProtect+," "ThermalProtect," and a revamped lineup of power supply units (PSUs), Corsair is shifting the paradigm from passive power delivery to active, intelligent thermal and electrical management.
The Core Challenge: Why 12V-2×6 Protection Matters
The transition from the traditional PCIe 8-pin connectors to the high-density 12V-2×6 standard has been met with mixed reception by enthusiasts. While the standard allows for significantly higher power delivery through a single cable, the compact nature of the pins makes them susceptible to heat buildup if not perfectly seated or if subjected to extreme electrical resistance.
Corsair’s engineering focus has shifted toward mitigating these risks at the source. Rather than relying solely on the graphics card’s internal safety protocols, Corsair is embedding monitoring directly into the power supply. This ensures that if a connection begins to degrade or exceed safe operating temperatures, the PSU can intervene before catastrophic hardware failure occurs.
The New Vanguard: Corsair AX1600i SHIFT
The flagship AX1600i, long considered the "gold standard" for enthusiast power supplies, has finally received its successor. The AX1600i SHIFT arrives as a testament to engineering miniaturization without compromising performance.
Design and Efficiency
By leveraging advanced Gallium Nitride (GaN) semiconductor technology, Corsair has achieved a significant reduction in the unit’s physical footprint. The AX1600i SHIFT measures just 170 mm in depth, a notable improvement over its 200 mm predecessor. Despite this smaller frame, the unit maintains its elite standing, achieving "Cybenetics Titanium" efficiency—the highest tier of energy conversion certification.
Connectivity and Monitoring

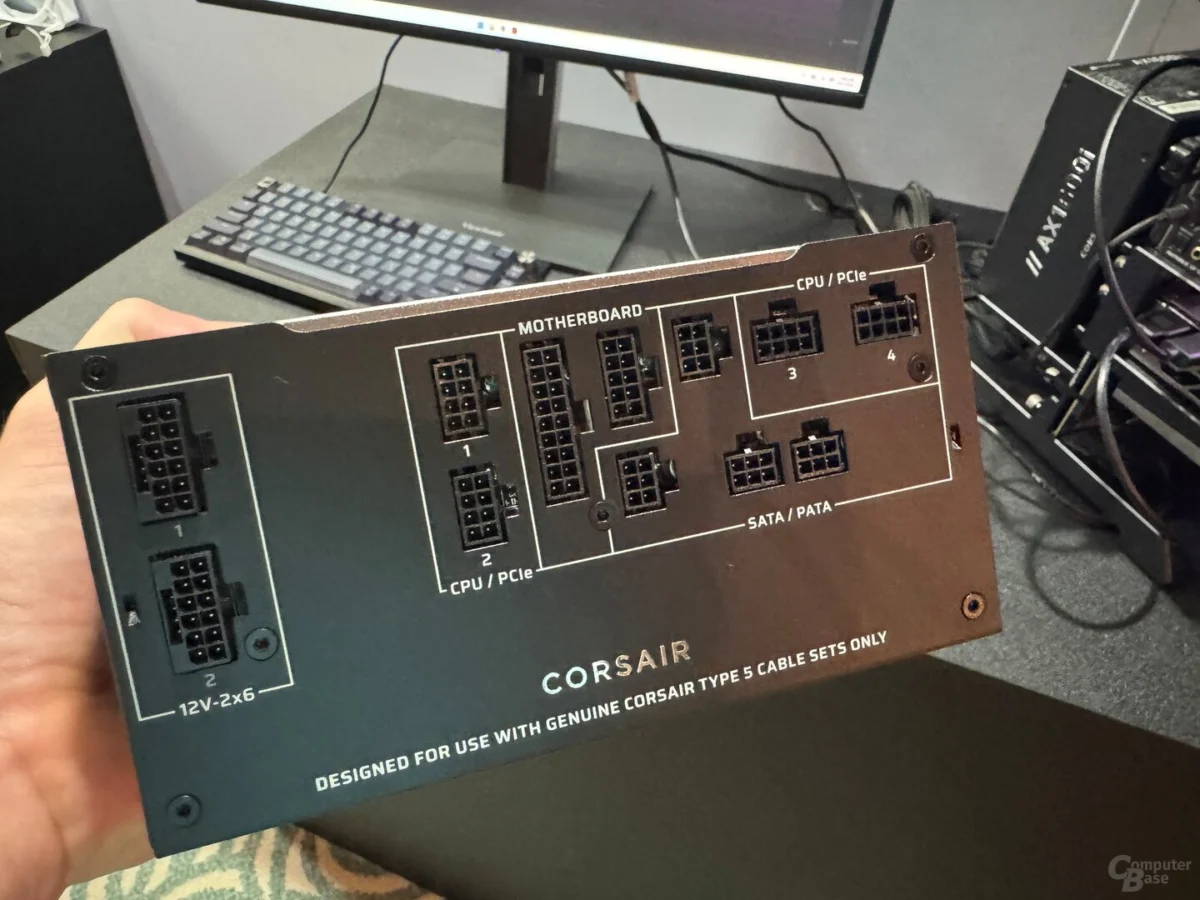

The "SHIFT" designation confirms that the unit utilizes the Type-5 cable standard, with all output connectors positioned on the side for easier cable management in modern chassis designs. Dual 12V-2×6 connectors are included to support multi-GPU setups or future high-draw components. For power users, the unit integrates seamlessly with Corsair’s iCUE software via a USB connection, allowing for real-time monitoring of power delivery. The cooling is managed by a 140 mm FDB fan, which features a Zero-RPM mode for silent operation under light loads.
Notably, the AX1600i SHIFT prioritizes raw power stability. While it does not include an iCUE Link hub, it allows for the passthrough of existing RGB ecosystems, maintaining a clean build environment for the user.
A Window into Power: The HX1000i SHIFT Crystal
Perhaps the most daring entry in the new lineup is the HX1000i SHIFT Crystal. This unit challenges the conventions of PSU design by featuring a transparent side panel, offering a rare view into the high-frequency electronics that power a modern workstation.
Engineering the Transparent PSU
Designing a transparent PSU is an immense technical challenge. Because a metal enclosure acts as a Faraday cage to suppress electromagnetic interference (EMI), replacing a section of this shielding with transparent material requires meticulous engineering to ensure the unit does not cause interference with other sensitive components. Corsair’s decision to pursue this indicates a confidence in their internal component layout and shielding efficiency.
PinProtect+ Integration
The HX1000i SHIFT Crystal is the primary showcase for PinProtect+. Unlike standard monitoring, PinProtect+ provides granular oversight of every individual pin within the 12V-2×6 connector. Through the iCUE software, users are not only able to observe real-time power draw metrics but can also adjust custom limit thresholds. This empowers the user to set a "safety ceiling," effectively creating an automated kill-switch that prevents the connector from being over-stressed. The inclusion of a 90-degree angle connector further improves physical compatibility with wider graphics cards, reducing the stress placed on the cable’s bend radius.
Expanding the Mid-Range: The RMe Series Updates
Corsair has also seen fit to upgrade its high-volume RMe series, acknowledging that safety features should not be exclusive to ultra-high-end power supplies.
The RM1200e
The new RM1200e sits at the top of the RMe lineup, introducing the baseline "PinProtect" technology (without the advanced user-configurable ‘+’ features). To improve cooling efficiency, Corsair has implemented a 3D-Y fan grille, a structural design change intended to maximize airflow while minimizing turbulence-induced noise. The unit is aesthetically refined with embossed cables and flat cable combs, with a white chassis variant available for themed builds.
Enhanced Protection for RM1000e and RM850e
For the more standard RM1000e and RM850e models, Corsair has integrated ThermalProtect. This system utilizes a dedicated sensor within the 12V-2×6 cable itself to monitor temperatures at the point of connection. This ensures that even if a connector is improperly seated—a common cause of overheating—the PSU will detect the thermal spike and shut down before melting occurs. Both models now boast Cybenetics Platinum efficiency ratings and a robust seven-year warranty, providing peace of mind for the mainstream enthusiast.
Chronology of Development: A Response to Industry Trends
- Late 2022: The emergence of the 12VHPWR connector leads to early, isolated reports of thermal issues in high-end GPU configurations.
- Early 2023: Corsair begins development of the "ThermalProtect" cable system, emphasizing that cable intelligence is the key to connector longevity.
- Mid 2024: Corsair unveils the "PinProtect" architecture, moving from passive cable sensors to active, PSU-side monitoring of individual pins.
- Late 2024 (Current): The launch of the AX1600i SHIFT, HX1000i SHIFT Crystal, and the upgraded RMe series marks the first comprehensive integration of these safety standards across a full product stack.
Supporting Data: Efficiency and Compliance
The move to Cybenetics certification—rather than the traditional 80 PLUS standard—is a strategic pivot for Corsair. Cybenetics provides a more rigorous, real-world assessment of power supplies, testing for noise, efficiency, and transient response.
- AX1600i SHIFT: Cybenetics Titanium (Maximum efficiency, minimal heat waste).
- HX1000i SHIFT Crystal: Cybenetics Platinum (High efficiency, premium thermal profile).
- RMe Series (New Models): Cybenetics Platinum (Significantly improved over previous generation standards).
By aligning with these certifications, Corsair is signaling that their focus is on long-term reliability and silent operation, rather than just hitting a raw wattage number.
Implications for the Future of PC Hardware
The introduction of PinProtect+ and ThermalProtect represents a significant shift in the relationship between the PSU and the GPU. Historically, the PSU was a "dumb" device—a simple converter of AC to DC power. Corsair’s new lineup changes this dynamic, turning the power supply into a diagnostic tool.
Preventing "Meltdown" Scenarios
The most immediate implication is the virtual elimination of melting connectors. By allowing the PSU to act as an active guardian, the hardware becomes "self-aware." If a user does not insert their 12V-2×6 cable fully, the PinProtect+ system will detect the abnormal resistance or temperature at the pin level and disable power delivery within milliseconds.
User Empowerment vs. Complexity
While these features provide immense safety, they do introduce a degree of complexity. The need for iCUE software to manage "PinProtect+" means that users must be comfortable with Corsair’s ecosystem. However, for the target demographic of these units—enthusiasts building high-end gaming rigs—this level of control is typically viewed as a major value-add.
Industry Standards
It is likely that other PSU manufacturers will follow Corsair’s lead. When a market leader sets a new safety benchmark, it inevitably becomes an expectation for the rest of the industry. The 12V-2×6 standard, once viewed with skepticism, may eventually be seen as a robust and reliable connector, thanks in part to these intelligent protective measures.
Final Thoughts: The New Standard of Reliability
Corsair’s latest announcements are not just about more power or better efficiency; they are a calculated response to the technical failures that have plagued the industry over the past two years. By integrating sophisticated monitoring directly into the power delivery chain, Corsair has effectively "hardened" the PC build process.
Whether it is the aesthetic innovation of the HX1000i SHIFT Crystal or the mission-critical safety of the RM-series ThermalProtect cables, Corsair is ensuring that the hardware of tomorrow remains protected. For the consumer, the message is clear: the era of worrying about connector stability is coming to an end. With the right power supply, high-performance computing is becoming safer, smarter, and more reliable than ever before.
